Omicron CMC500

Advanced Testing Capabilities:

The OMICRON CMC 500 enables comprehensive testing of protection schemes including overcurrent, distance, differential, directional, earth fault, and feeder protection. It supports advanced testing of transformer, generator, motor, and line protection schemes, as well as end-to-end testing applications. With full support for IEC 61850, including GOOSE and Sampled Values, the CMC 500 is ideally suited for testing both conventional and digital substations.

Intuitive Operation:

Paired with OMICRON’s powerful and user-friendly Test Universe software, the CMC 500 simplifies complex testing tasks. Intuitive workflows, automated test modules, and clear result visualization ensure efficient test setup, execution, and documentation, reducing testing time and operator effort.

High Precision and Accuracy:

Engineered to OMICRON’s exacting standards, the CMC 500 delivers highly precise and repeatable measurement results. Its accurate signal generation and measurement capabilities are essential for verifying relay performance, ensuring protection system reliability, and meeting stringent commissioning and compliance requirements.

Versatile Applications:

The CMC 500 is suitable for commissioning, routine maintenance, troubleshooting, and system upgrades. Its modular and scalable design makes it adaptable for a wide range of protection testing requirements, from low-level secondary injection to high-power applications requiring elevated current output.

Compact and Field-Ready:

Despite its high output capability, the CMC 500 is designed for practical field use. Its compact, robust construction and modular setup allow easy transport, quick deployment, and reliable operation in substations, power plants, and industrial environments.

Comprehensive Support:

When you rent the OMICRON CMC 500 from us, you gain access to full technical support from our experienced testing specialists. From configuration and test planning to execution and troubleshooting, we ensure your protection testing activities are efficient and successful.

Trusted by Industry Professionals:

Used by utilities, protection engineers, and service providers worldwide, the OMICRON CMC 500 is a trusted solution for modern protection relay testing. Its performance, flexibility, and IEC 61850 capabilities make it a preferred choice for ensuring the reliability and security of power system protection schemes.

Key Features:

• High-performance current and voltage sources for advanced relay testing

• Modular and scalable design for flexible testing configurations

• Suitable for numerical, static, and electromechanical protection relays

• High current output capability for demanding applications and primary injection support

• Full IEC 61850 support, including GOOSE and Sampled Values

• Advanced protection scheme testing for line, transformer, generator, and motor protection

• Seamless integration with OMICRON Test Universe software

• Compact, rugged design optimized for field testing

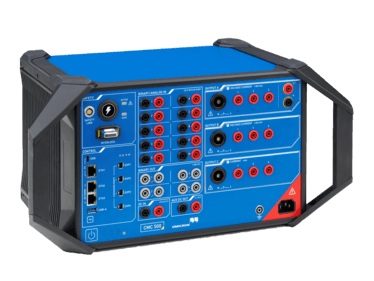

The OMICRON CMC 500 is a next-generation, modular protection relay test system designed for testing all generations and types of protection relays in modern power systems. With its powerful and flexible current and voltage source configuration, the CMC 500 delivers high output power, wide dynamic range, and exceptional accuracy, making it suitable for testing numerical, static, and electromechanical relays. Its scalable architecture allows engineers to adapt the system to demanding applications, from secondary injection testing to high-current primary injection scenarios.
