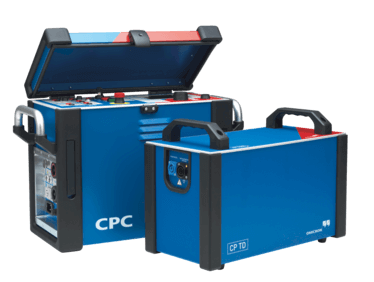

OMICRON CPC 100

Advanced Testing Capabilities:

The CPC 100 PTM supports primary injection testing with outputs of up to 800 A or 2000 V and up to 5 kVA over a frequency range of 15 Hz – 400 Hz, as well as 400 A DC for DC testing. When paired with current or voltage amplifiers, the system can deliver up to 2000 A or 12 kV, allowing testing of high-capacity transformers, circuit breakers, and large rotating machines. Its excellent interference suppression ensures precise measurement of even small signals, providing reliable diagnostic results in challenging field conditions.

Intuitive Operation:

Equipped with the Primary Test Manager (PTM) software, the CPC 100 simplifies complex testing processes. Automated test procedures, guided workflows, and ready-to-use templates ensure consistent results and reduce operator effort. Real-time monitoring, data logging, and automatic report generation streamline documentation and improve decision-making.

Portable and Field-Ready:

Weighing only 29 kg, the CPC 100 PTM is compact and easily transportable by a single technician, enabling rapid deployment and operation in substations, industrial plants, and remote locations. Its rugged construction ensures dependable performance under harsh field conditions.

Comprehensive Support:

Renting the OMICRON CPC 100 PTM from Brandis Hire includes full access to our technical support team. From initial setup and configuration to troubleshooting and advanced test guidance, we ensure smooth, accurate, and efficient testing operations.

Trusted by Industry Professionals:

The CPC 100 PTM is widely used by utilities, service providers, and industrial operators worldwide. Its versatility, reliability, and ability to integrate with advanced testing accessories make it a preferred choice for commissioning, maintenance, and condition-based monitoring of primary electrical assets.

Key Features:

• Primary injection output up to 800 A / 2000 V and up to 5 kVA over 15 Hz – 400 Hz, or 400 A DC

• Extendable to 2000 A / 12 kV with current or voltage amplifiers

• Excellent interference suppression for accurate small-signal measurements

• Portable and lightweight (29 kg) for easy field deployment

• Integrated Primary Test Manager (PTM) software with automated testing templates and reports

• Supports testing of power transformers, CT/PT/VT, rotating machines, circuit breakers, grounding systems, lines, and cables

• Enables advanced diagnostics such as Tan Delta / power factor measurements and line/ground impedance testing

The OMICRON CPC 100 PTM is a versatile primary injection test system that simplifies electrical testing of high-voltage equipment, including transformers, rotating machines, grounding systems, lines, cables, and circuit breakers. By consolidating multiple functions into a single portable unit, it reduces training, transport, and setup time, making it ideal for commissioning, maintenance, and asset condition assessment.

Its modular design supports advanced testing accessories for Tan Delta/power factor measurements, line and ground impedance testing, and other high-precision diagnostics. The Primary Test Manager (PTM) software automates test sequences, generates templates, and produces detailed reports, speeding up testing by up to 30% and minimizing manual effort.
