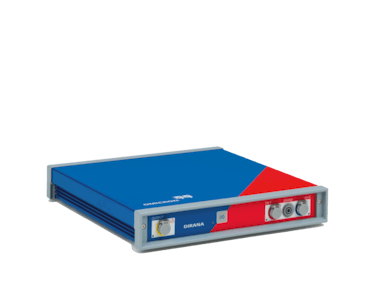

Omicron DIRANA

Advanced Diagnostic Capabilities:
The DIRANA analyzes the dielectric response of insulation over a very wide frequency range, enabling detailed moisture assessment, identification of ageing effects, and evaluation of insulation integrity. Its revolutionary FDS & PDC+ algorithm delivers fast measurement times—up to 20× faster than traditional methods—allowing full frequency sweeps from 10 µHz to 1 kHz in less than 2 hours. Results are automatically compared and evaluated against international standards or customised limit values for reliable condition assessment.

Intuitive Operation:
Operated through Primary Test Manager™ (PTM) software, DIRANA simplifies test setup, execution and data management. PTM automatically generates test plans based on nameplate information and guides users through workflows, while also offering smart features for result evaluation and reporting.

Portable and Field‑Ready:
The DIRANA comes as a compact and rugged all‑in‑one test set, designed for easy transport and reliable performance in field environments. Its simple wiring concept with integrated guard connections accelerates setup and ensures consistent measurements on site.

Comprehensive Support:
Renting the OMICRON DIRANA from us includes access to technical support for setup, software integration, and troubleshooting, ensuring efficient and dependable testing operations across projects.

Trusted by Industry Professionals:
Widely used by utilities, transformer manufacturers, and service providers globally, DIRANA is recognised for its precision, speed and ease of use in dielectric insulation diagnostics. Its capabilities make it an essential tool for condition‑based maintenance, commissioning checks, and predictive asset management.

Key Features:

• Uses DFR (Dielectric Frequency Response) and advanced PDC+ measurement for comprehensive insulation analysis

• Fast and detailed testing: up to 20× quicker than traditional DFR solutions

• Fully automatic parameter setting and moisture assessment for reliable results

• Supports insulation types filled with mineral oil, natural/synthetic ester, air or vacuum

• Operated via Primary Test Manager™ (PTM) software for simplified workflows, evaluation and reporting

• Compact, rugged, and portable all‑in‑one test set

• Guided test setup and execution with smart data management

The OMICRON DIRANA is a powerful FDS‑PDC+ dielectric insulation analyzer engineered to determine the insulation condition of high‑voltage electrical assets. Using advanced Dielectric Frequency Response (DFR) analysis combined with polarization/depolarization current (PDC+) measurement, DIRANA provides accurate, fast and comprehensive evaluation of insulation systems such as those found in power transformers, bushings, cables, generators, and other high‑voltage equipment. This all‑in‑one diagnostic solution offers unparalleled insight into moisture content, oil conductivity, and overall insulation health across diverse asset types.
